Hello buddies, I hope you might be very nicely; at this time on this tutorial, we’ll apply conditional leaping for performing some code on the incidence of some circumstances. Like every other programming language, leaping is without doubt one of the commonest approaches to switch the execution from its sequential mode to run completely different processes or directions marked by a label and bypassing the strains of codes in between the final executed transaction earlier than the soar instruction and the labeled instruction whom this system goes to maneuver to. The benefit of this method is shortening the scan cycle of this system resulting from not working the entire program. Nevertheless, utilizing leaping methods in coding may be very harmful. It could assist in case you have been cautious of lacking some open instances earlier than going anyplace within the code. For instance, allow us to say that we began one course of. In the course of the method’s sequence, one soar instruction is used to run some logic underneath some circumstances, so leaping means leaving or skyping for some cause and going working some logic or code. Subsequently, we must always take into account the skipped directions’ results and penalties on the entire course of and program logic. As well as, as a result of any soar instruction can goal any label and plenty of soar directions can goal the identical label, it’s best to pay nice consideration to be sure you identify the right label based on the designed logic to keep away from dropping the rationale you propose your program to do. I do know you may take it straightforward now and cannot think about somebody proper mistaken label by mistake. However, when you may be writing a large-scale mission which incorporates a whole bunch and even hundreds of rungs and has {couples} of dozens of labels, in that case, you may rapidly mistakenly write the mistaken label.
JMP and LBL directions

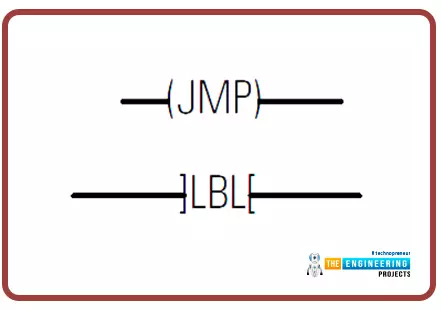

To carry out leaping within the ladder logic program, two directions are collectively, as proven in Fig. 1. The primary instruction is JMP which tells the PLC you could soar from the place the soar instruction is to the place you discover the LBL instruction.
Fig. 1: JMP and LBL directions

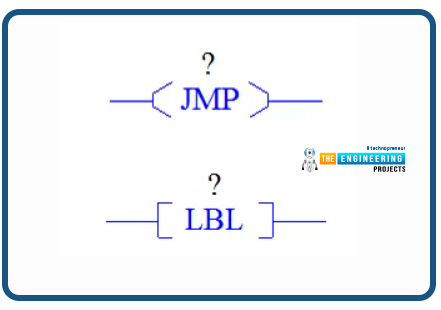

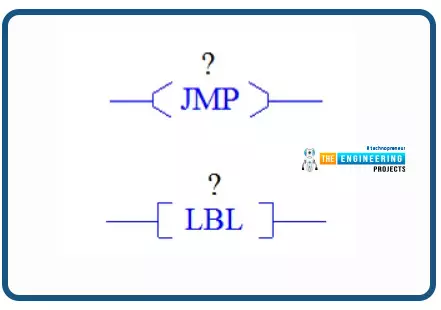

Now how one can know the label to whom you need this system execution to go or soar? Properly, that is a superb query, and the reply is that it’s best to specify the label identify as a parameter of soar instruction and the label instruction. Subsequently, you may discover, my buddies, if Fig. 2, the JMP and LBL directions have a query mark denoting it’s best to specify the label identify, which is the subsequent station to programme execution.
Fig. 2: Leap and Label instruction exhibiting the label identify above of them
Leap instruction ladder logic instance

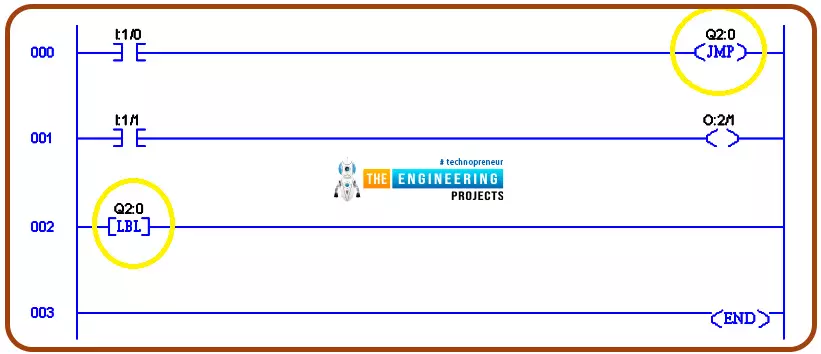

Now buddies, allow us to see how soar and label directions work collectively, as proven in fig. Three depicts a simple instance of ladder logic during which JMP and LBL instruction work collectively, referring to the identical label Q2:0. On this instance, if enter contact I1/0 is activated, JMP instruction will take the execution the place the Q2:0 label “LBL” instruction is. In consequence, the rung 001 has been bypassed.
Fig. 3: ladder logic instance for soar and label directions

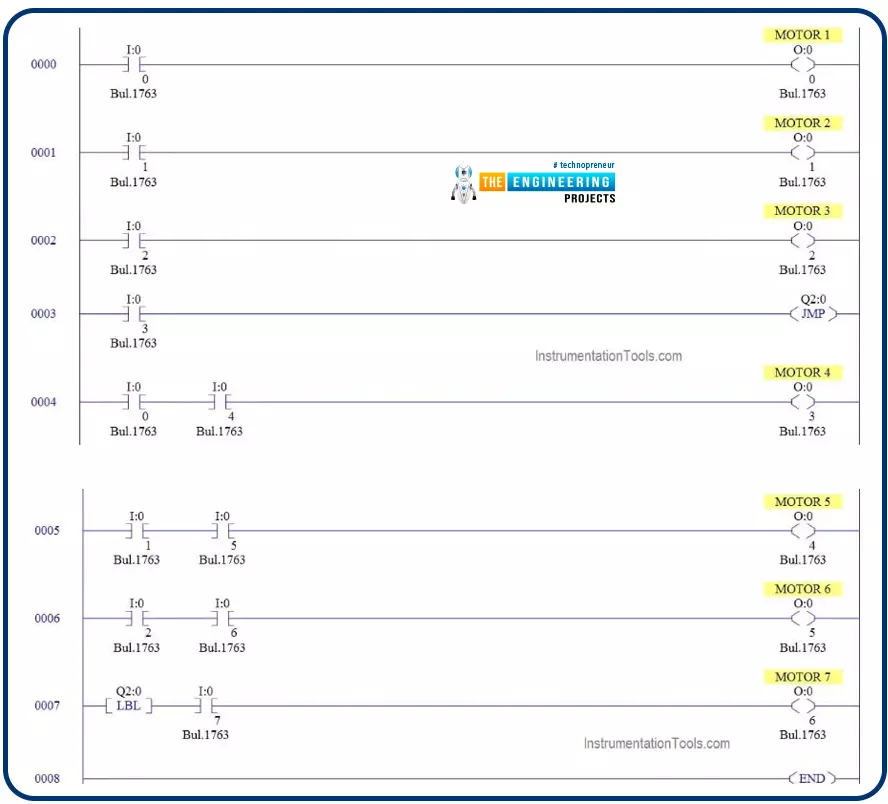

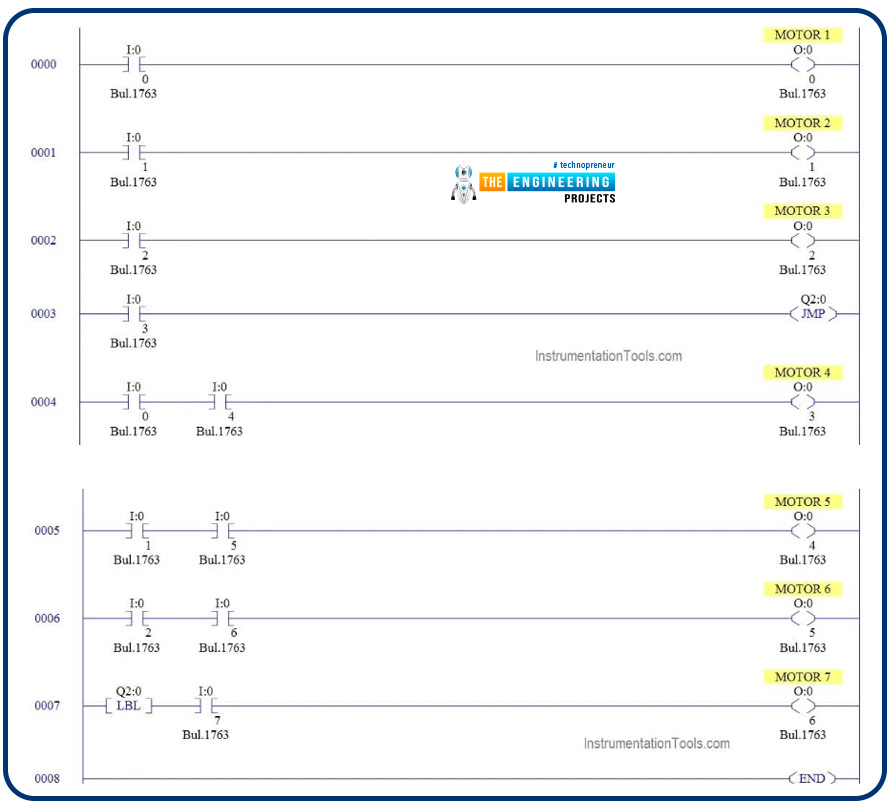

How about going with a scenario the place we have to make use of JMP and LBL instruction? Sure, within the instance proven in fig. 4, You may discover right here on this instance. There are a few motors and for these motors. We have to. Use Siri. The command of the soar. And together with the uh label instruction. 2. Let some motors work in a single situation. And in one other situation, we’ll let a few of these motors worworkd the others will not be working. So you may think about in case you are working with {Couples} of pumps and need to run all pumps collectively in a single situation, so you don’t activate the JMP command. However, in one other situation, in case you’re working a few of these pumps. So what we’re going to do right here on this instance is to activate the JMP command to bypass a few of these pumps, that are between the JMP and LBL instructions.
Fig. 4: an actual instance of soar instruction

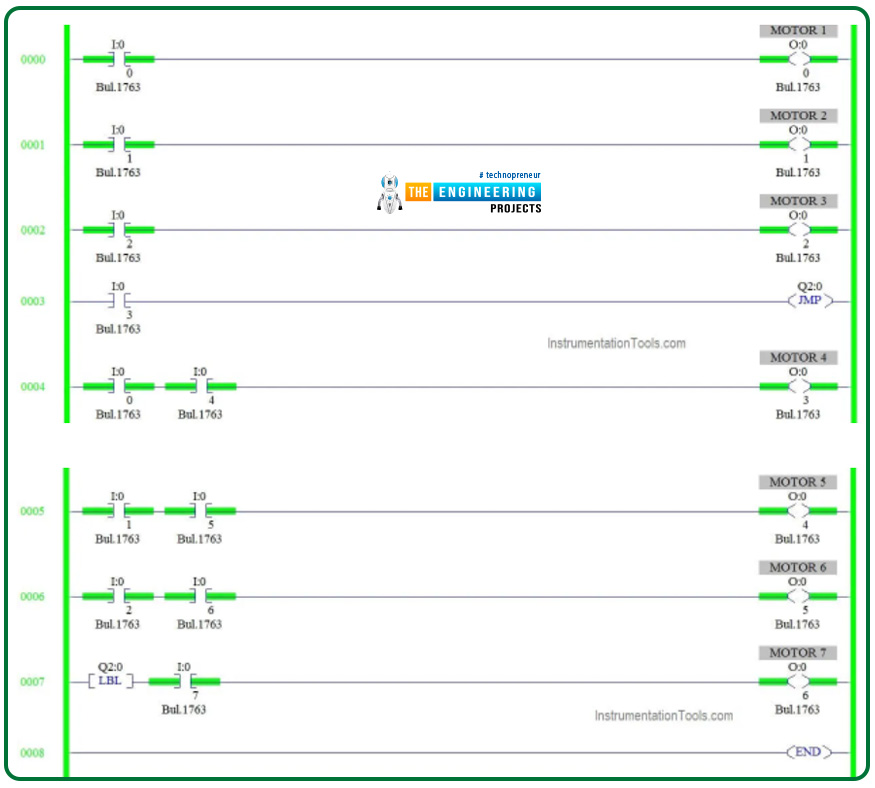

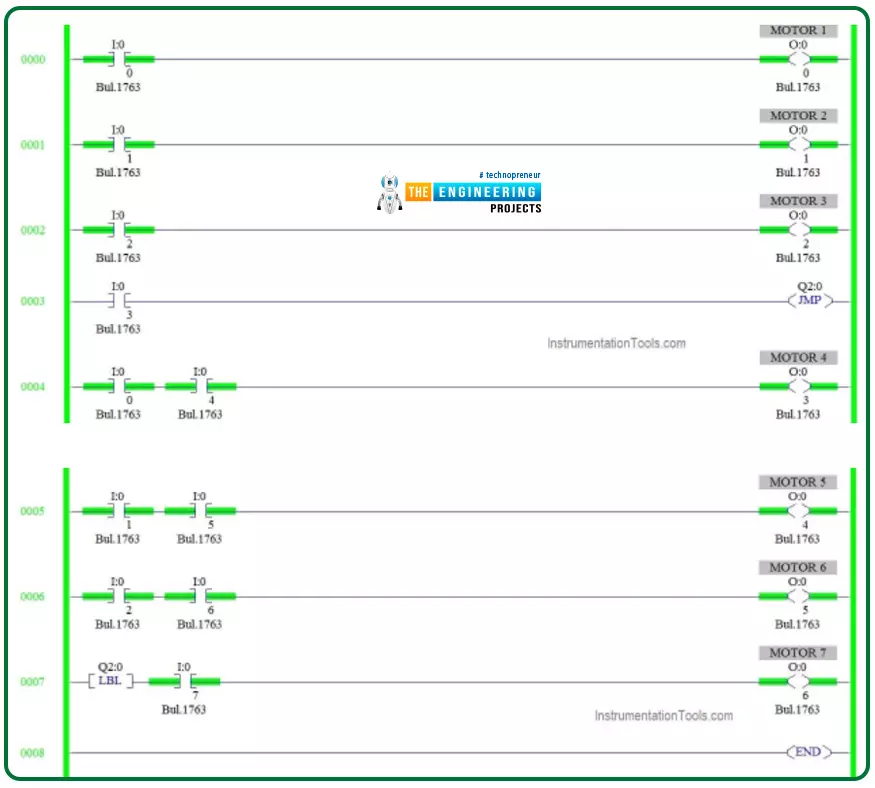

Determine 5 depicts the execution of the pattern program that demonstrates JMP instruction. This case exhibits what occurred within the first situation instance. If we don’t activate soar instruction in rung 3, then all motors 1,2,3,4,5,6 and seven will run based mostly on the standing of their firing contacts that are I:0 0 to 7, respectively. And this system execution continues working different motors after the JMP as it isn’t activated by contact I:0 3.
Fig. 5: take a look at when JMP isn’t activated

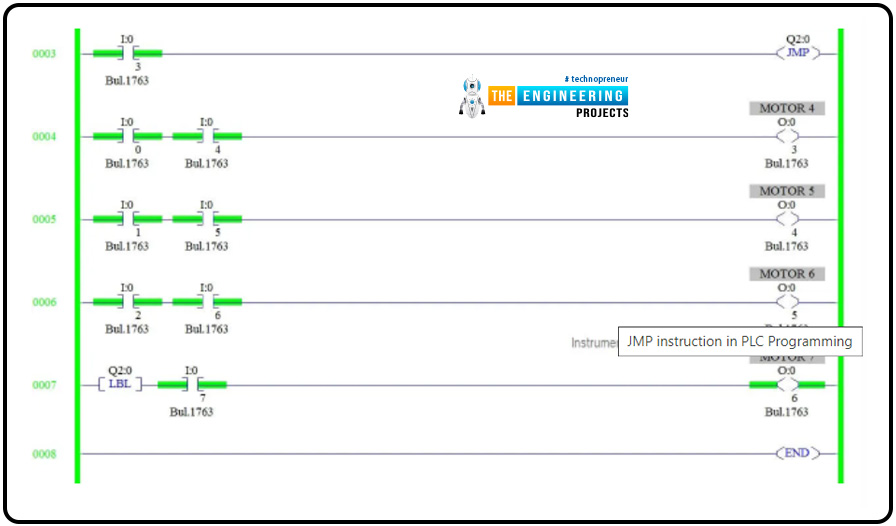

However, Fig. 6 depicts the second situation when activating JMP instruction by contact I0:3 at run quantity 3. By activating the soar command, We will discover solely the motor earlier than soar directions are working based mostly on their command contacts when the pumps in between jumps and label instructions are bypassed, and the opposite engines after label instruction are working. So motors 1,2 and three are working, motors 4,5 and 6 have been ignored by activation of soar command instruction, whereas motor seven is working, which is at label command.
Fig. 6: take a look at when JMP is activated
What’s subsequent,
I need to thanks all for following me on this quick and important tutorial that may assist you make the most of the soar and label command directions to manage the logic circulate of your program based mostly on the conditions and the logic design of your program. So now you may carry out security management to keep away from working some gear underneath some circumstances to guard the operator and gear. As well as, you may run many logic situations in a single program based mostly on the standing of enter and output units. Within the following tutorial, we’ll take one thing neer to leap, which is subroutines, exhibiting you how one can make your program modular and divided into subroutines to be organized and readable and simple to keep up, observe, and being modified. So be prepared, and allow us to meet quickly to study and apply the brand new ladder logic programming tutorial.
